Legolizer

Convert any 3D object to a legolized 3D object.


physics animation still
still from lego physcis animation
still from lego physcis animation
still from lego physcis animation


LEGO Porsche


a porsche made of lego

A Porsche made of LEGO, by LEGO Certified Professional R. Hoffmeister and A. Al-Rubaie from 1000steine.com. A basic, mono-coloured LEGO structure was made using the Legolizer. René and his colleague used it as a basis and then fine-tuned it, added the patterns and colouring and, last but not least, built this impressive piece of LEGO art.

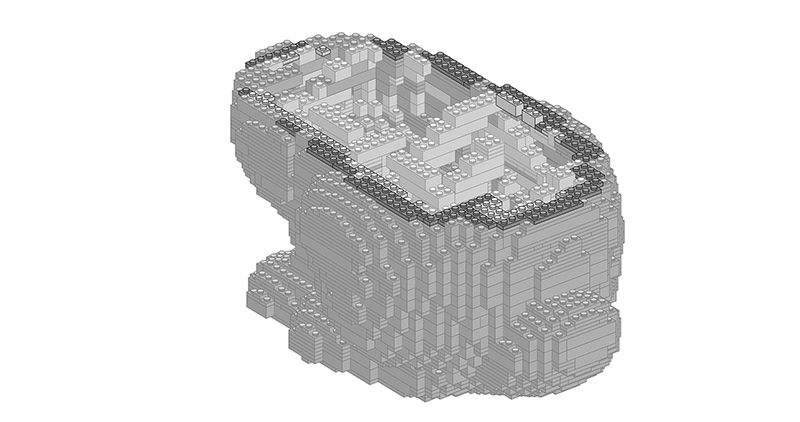

LEGO Blueprint


lego brick animation

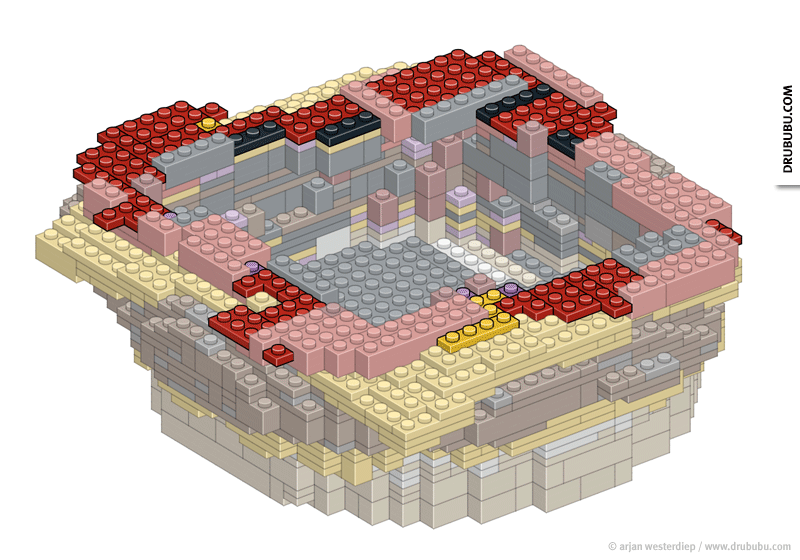

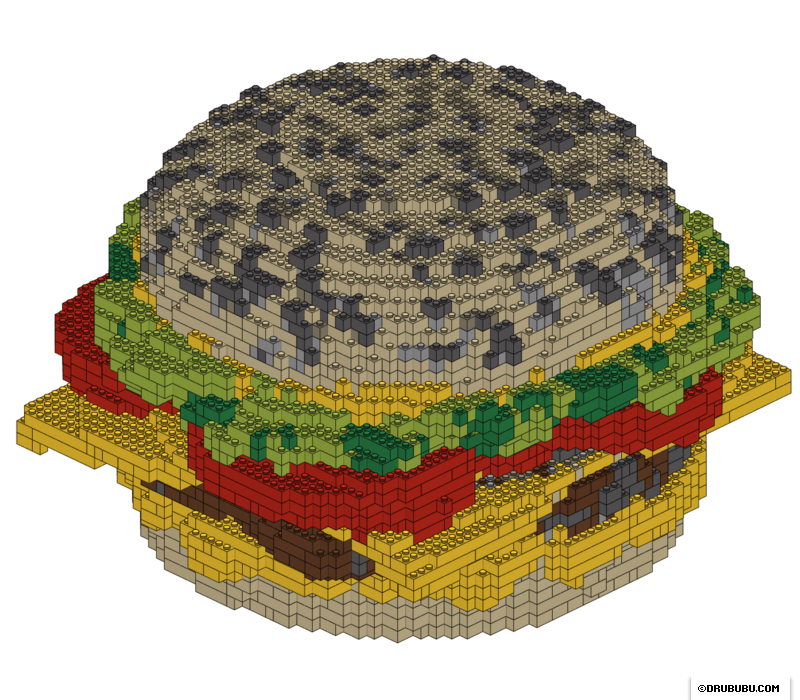

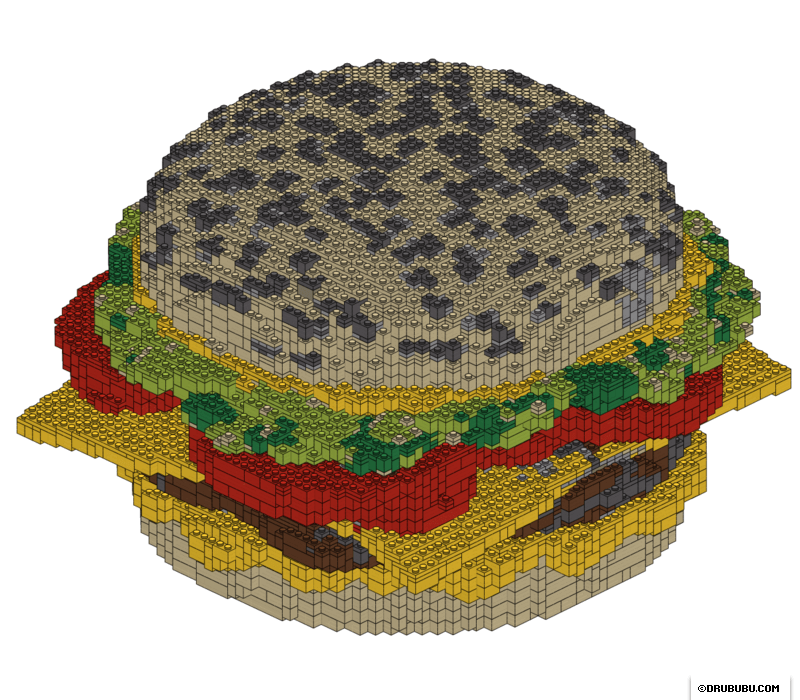

bricks only 3d bricks only with internal structure bricks and plates with internal structure

Layers

Once the complete blueprint has been generated, it's time to generate a blue print for each vertical layer of LEGO bricks and start building the real LEGO object.

Reproducing the blueprints on a one-on-one basis is not sufficient to build the real LEGO object.

The real object is not rigid enough to withstand gravity. For this project the LEGO bricks on the outside needed to be approxiamately 3 LEGO units thick.
For instance, to prevent the arms from falling down, more bricks are needed. The inside needed a internal structure as well to prevent the object from collapsing from under it's weight. During the building phase these additional LEGO bricks are applied.

lego blueprint layer 6
layer 24
lego blueprint layer 47
layer 47
lego blueprint layer 85
layer 85


To build a LEGO model, you can either use only LEGO bricks or a combination of LEGO bricks and LEGO plates. The following examples show both options.

A model made of LEGO bricks only. In addition to the model, there is a list showing the LEGO bricks used, including colour, element ID, price per LEGO brick and total price.

A model made of LEGO bricks and LEGO plates. Notice that the vertical resolution is tripled compared to the LEGO bricks-only model. The downside of this option is the increased price compared to the LEGO bricks-only model.

Lego Bricks & Color

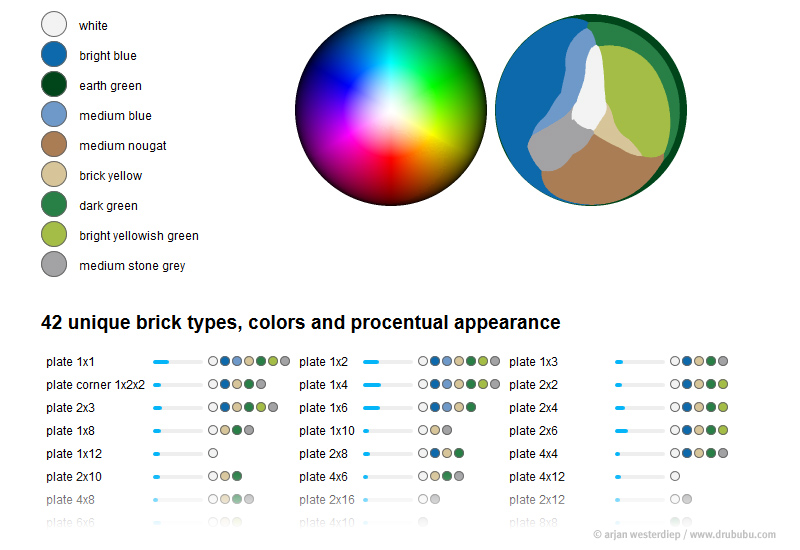

infographic lego brick color mapping
From left to right: Original 3D model, legolized 3D model with unlimited brick colors, legolized 3D model with available brick colors

To reproduce the colors of the original 3D model you can use any color for the LEGO bricks. This approach works fine as long as the legolized object is virtual, meaning that it can be used for a 3D animation and/or 3D still.

Building a legolized 3D model as a real-life LEGO object may be a problem. LEGO bricks are available in a limited range of colors. A 1 x 1 LEGO brick is available in the following colors: white, bright red, bright blue, bright yellow, black, dark green, brick yellow, bright orange, medium blue, dark stone gray, reddish brown, medium stone gray, bright yellowish green, light purple, bright purple and medium azure. Depending on the LEGO brick type, there may be more or less colors available in the pick-a-brick lego store.

For a real-life LEGO model, the colors of the original 3D model must be converted to one of the available colors, which reduces the fidelity compared to original 3D models (see image above).

Resolution


lego hamburger

A 3D model can be converted into any size you want. If the number of LEGO bricks is small, the costs are low, and so is the resolution. Depending on the resolution, details may disappear. If the number of LEGO bricks is low, the original 3D model will be reproduced more precisely.

Download 3D LEGO model

Download the 3D LEGO model hamburger for non-commercial usage.
Choose .3ds for Autodesk 3ds Max, choose .c4d for Maxon Cinema 4D, .dae (COLLADA) or .obj (Wavefront).

Bricks only (for 3D) .3ds .dae .c4d .obj
Bricks only and plates (for 3D) .3ds .dae .c4d .obj
Bricks only (for physical LEGO objects) .3ds .dae .c4d .obj
Bricks and plates (for physical LEGO objects) .3ds .dae .c4d .obj

Lego bricks


lego object out of lego bricks
Brick Name Color Element ID Pieces Price Total Price
Brick 2x8 Medium Stone Gray 6037399 3 € 0.38 € 1.14
Brick 2x6 Medium Stone Gray 4211795 3 € 0.30 € 0.90
Brick 2x2 Medium Stone Gray 4211387 94 € 0.15 € 14.10
Brick 1x10 Medium Stone Gray 4211521 111 € 0.34 € 37.74
Brick 2x4 Medium Stone Gray 4211385 33 € 0.23 € 7.92
Brick 1x8 Medium Stone Gray 4211392 91 € 0.30 € 27.30
Brick Corner 1x2x2 Medium Stone Gray 4211349 99 € 0.23 € 22.77
Brick 1x6 Medium Stone Gray 4211393 179 € 0.26 € 46.54
Brick 1x1 Medium Stone Gray 4211389 275 € 0.08 € 22.00
Brick 1x4 Medium Stone Gray 4211394 382 € 0.15 € 57.30
Brick 2x3 Medium Stone Gray 4211386 77 € 0.19 € 14.63
Brick 1x3 Medium Stone Gray 4211428 335 € 0.15 € 50.25
Brick 1x2 Medium Stone Gray 4211388 136 € 0.11 € 14.96
1818 € 317.55

Lego bricks and Lego plates


lego object out of lego bricks and lego plates
Brick Name Color Element ID Pieces Price Total Price
Plate 2x10 Medium Stone Gray 4211462 2 € 0.26 € 0.52
Plate 1x4 Medium Stone Gray 4211445 183 € 0.11 € 20.13
Plate 4x10 Medium Stone Gray 4211402 2 € 0.56 € 1.12
Brick 1x2 Medium Stone Gray 4211388 622 € 0.11 € 68.42
Brick 1x1 Medium Stone Gray 4211389 1288 € 0.08 € 103.04
Plate 2x8 Medium Stone Gray 4211406 2 € 0.26 € 0.52
Plate 1x8 Medium Stone Gray 4211425 36 € 0.19 € 6.84
Plate 2x4 Medium Stone Gray 4211395 18 € 0.15 € 2.70
Plate 2x6 Medium Stone Gray 4211452 13 € 0.19 € 2.47
Plate 1x6 Medium Stone Gray 4211438 53 € 0.15 € 7.95
Plate 4x4 Medium Stone Gray 4243797 4 € 0.23 € 0.92
Plate 1x3 Medium Stone Gray 4211429 235 € 0.08 € 18.80
Plate 1x1 Medium Stone Gray 4211399 574 € 0.08 € 45.92
Brick 1X3 Medium Stone Gray 4211428 221 € 0.15 € 33.15
Brick Corner 1x2x2 Medium Stone Gray 4211349 281 € 0.23 € 64.63
Plate 2x2 Medium Stone Gray 4211397 95 € 0.11 € 10.45
Plate 2x3 Medium Stone Gray 4211396 37 € 0.15 € 5.55
Brick 1x4 Medium Stone Gray 4211394 132 € 0.15 € 19.80
Plate 1x2 Medium Stone Gray 4211398 250 € 0.08 € 20.00
Corner Plate 1x2x2 Medium Stone Gray 4211353 181 € 0.08 € 14.48
Plate 6x6 Medium Stone Gray 4211474 1 € 0.53 € 0.53
Plate 4x6 Medium Stone Gray 4211404 3 € 0.45 € 1.35
Brick 1x8 Medium Stone Gray 4211392 6 € 0.30 € 1.80
Plate 2x12 Medium Stone Gray 4211360 1 € 0.30 € 0.30
Brick 1x6 Medium Stone Gray 4211393 18 € 0.26 € 4.68
Brick 2x3 Medium Stone Gray 4211386 39 € 0.19 € 7.41
Brick 2x2 Medium Stone Gray 4211387 23 € 0.15 € 3.45
4320 € 421.01


Features especially for your customized virtual 3D LEGO objects:

  • Each LEGO brick and plate is an individual object.
  • Highly optimized mesh.
  • LEGO brick types that fit your requirements.
  • Any size.


lego object out of lego bricks and lego plates
Highly optimized mesh.

The LEGO bricks and plates used to generate the legolized version of a 3D model are adjustable in the conversion program; 2x2 , 2x4, 2x6 LEGO bricks and so on, or imaginary, non-existing commercially available LEGO bricks and plates.

Features especially for your customized real-life LEGO objects

  • Adjustable thickness (in LEGO units).
  • Number of bricks and plates per brick type known in advance.
  • LEGO brick and plates positioning optimized for maximum strength; prefference for overlapping and staggering above stacking.
  • Preference for larger bricks and/or plates; less building time, more strength.
  • (Optional) Internal structure for more strength.
  • LEGO brick types which fit your requirements.
  • Blueprint per layer (collection of 2D vector illustrations (see blueprints below this page)).
  • Any size.

Pricing

The conversion program is not commercially available. however, if you want your own 3D model as legolized 3D object, please feel free to contact me about the costs. The costs depend on your requirements; size, specific bricks, etc.
If you have any questions/remarks, please feel free to send me an e-mail.


Prefer email? send your email to info@drububu.com.
